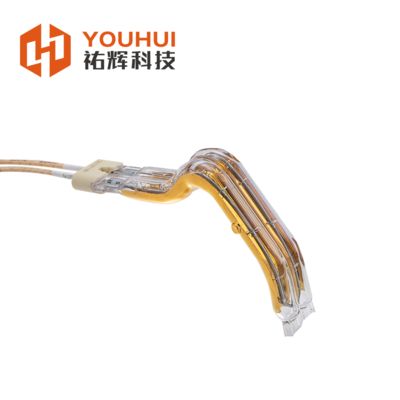

45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube

45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube

Tên thương hiệu: UVIR
Số mẫu: loại L
MOQ: Có thể thương lượng
giá bán: Có thể thương lượng
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE & ROHS
Vật liệu:
Thủy tinh
Ứng dụng:
Xe, RV, ngoài trời, khách sạn, nhà để xe, thương mại, hộ gia đình,
Tên sản phẩm:
đèn halogen nóng tròn
Công suất:
150-6000W
Đường kính ống:
8x18 11x23 15x33mm
Dịch vụ giải pháp chiếu sáng:
Lắp đặt dự án
Trọn đời:
5000 giờ
Nắp gốm:
SK15 / R7S / RX / TC01 và v.v.
Điện áp:
45-480V
chi tiết đóng gói:
Mỗi đèn trong một xi lanh. Sau đó, trong một hộp gỗ dán chuyên nghiệp
Làm nổi bật:

45-480V Infrared Heating Lamp

,

150-6000W Halogen Heater Tube

,

11x23mm Infrared Heating Element Tube

Mô tả sản phẩm
45-480V 150-6000W Twin Tube L-Type Infrared Lamp 11x23mm IR Heater Lamp
Product Specifications
Attribute Value
Material Glass
Application Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Product name Circular heating halogen lamp
Wattage 150-6000W
Tube Diameter 8x18 11x23 15x33mm
Lighting solutions service Project Installation
Lifetime 5000 hours
Ceramic Cap SK15 / R7S /RX / TC01 and etc
Voltage 45-480V
Product Description

Infrared heater which is best matched to the materials to be heated can provide energy savings of up to 50% over other technologies. Our professional infrared technology delivers heat exactly where it's needed, with the optimum wavelength for the product.

Ring Tube IR Lamps Features
  • Special designs for circular 2.3-D surfaces
  • Ring diameter from 39 up to 600 mm
  • Voltage from 24 to 575 V
  • Short, medium and long-wave IR designs available in various tube colors
  • Tube diameter from 8-14mm
  • Selection depends on heater's diameter and the voltage-wattage relationship
  • Excellent shock terms for immediate delivery
  • Custom and OEM designs available
Technical Parameters
Parameter Specification
Product name L type infrared lamp
Voltage 48-480V
Power 150-6000W
Shape Round or alien, can be customized
Pipe diameter 8x18 11x23 15x33mm
Material Quartz tube
Coating Gold
OEM/ODM Many types of voltage, wattage, length, base, cables available with universal burning position
45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube 0
Selected Stock and Standard (Non-Stock) Contour
Short-Wave IR Lamps for 3-D Applications
45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube 1
Safety Precautions
  • The relative humidity of the air should not exceed 95%
  • No flammable, explosive, corrosive gas or conductive dust in the environment
  • Protect from violent impact and vibration
  • Working voltage should not exceed 1.1 times the rated value
  • Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min
Applications
  • Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house
  • Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
  • Plastics: Welding, Forming, Softening, Curing, Drying
  • Printing: Ink drying, Silk Screening, Bindings, Glue drying
  • Food: Baking, Browning, Dehydrating, Pasteurizing
  • Textiles: Web Drying, Finishing, Pre-shrinking
  • Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit
45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube 2
Frequently Asked Questions
How to place the order?

Provide your required lamp specifications including lamp type, diameter, length, power, voltage, reflector. We'll send you a quotation. After payment, production begins and products will be shipped when completed.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps for clients. The corresponding clamps quantity with purchased lamps are supplied freely by us.

Have an unusual design?

Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

If the parameter is not suitable for you, please contact us. Our professional team will provide technical knowledge and drawings for your specific needs.
