200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating

200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating

Tên thương hiệu: UVIR
MOQ: 10
giá bán: Có thể thương lượng
Thông tin chi tiết
Nguồn gốc:
TRUNG QUỐC
Chứng nhận:
CE
Từ khóa:
Máy sưởi đèn hồng ngoại
Loại sợi:
Vonfram
Bảo hành (năm):
1 năm
Màu sắc:
Trắng
Chiều dài sóng:
Sóng ngắn
Ứng dụng:
Sưởi ấm
OEM/ODM:
Nhiều loại điện áp, công suất, chiều dài, đế, dây cáp, vị trí đốt phổ quát có sẵn
Vật liệu:
Dây ống thạch anh/vonfram
Nhiệt độ sợi:
1100-2600 ° C.
Quyền lực:
200-4000W
chi tiết đóng gói:
Mỗi đèn trong một xi lanh. Sau đó, trong một hộp gỗ dán chuyên nghiệp.
Làm nổi bật:

200-4000W Quartz Infrared Heater Lamp

,

Short Wave Infrared Heater Lamp

,

1100-2600°C Infrared Heating Lamp

Mô tả sản phẩm
200-4000W Short Wave Quartz Infrared Heater Lamp

Single Tube 200-4000W Quartz Heater Infrared Lamps IR Halogen Lamp

Product Specifications
Attribute Value
Keywords infrared lamp heater
Filament type Tungsten
Warranty 1 Year
Color white
Wave Length short wave
Application heating
OEM/ODM many types of voltage, wattage, length, base, cables, universal burning position is available
Material quartz tube/tungsten wire
Filament temperature 1100-2600°C
Power 200-4000W
Product Features
Carbon Fiber Heat Lamp
  • High-priced imported carbon fiber filament
  • The finished filament is smooth and does not fluff
  • The optimum power and maximum longevity
Quartz Glass Tube
  • High quality high-temperature quartz glass
  • Long serving life: over 5000 hours
  • Nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated
Technical Specifications
Product name Short wave infrared heating lamp
Heating length 50-1500mm, Customizable
Voltage 24-575V
Wattage 200-4000W
Base Customizable
Material Quartz tube
Type Single tube
OEM/ODM many types of voltage, wattage, length, base, cables, universal burning position is available

Single wave high quality quartz lamps adopt high-quality transparent quartz tube material, effectively increasing the radiation density of infrared rays. Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

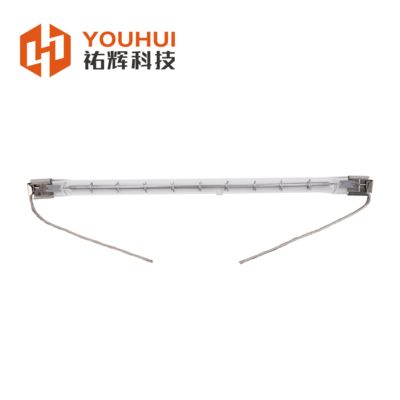

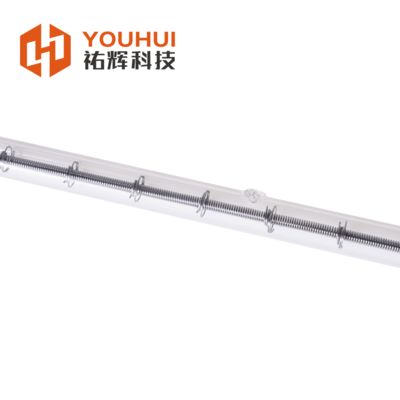

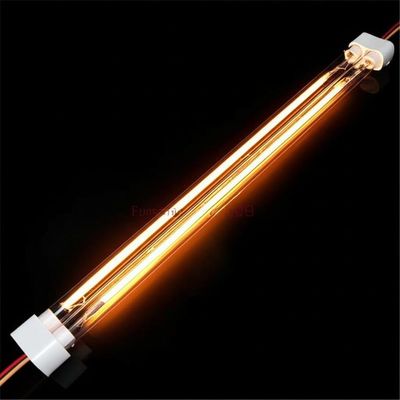

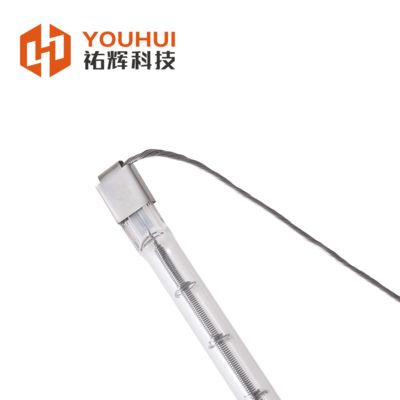

200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating 0 200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating 1 200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating 2 200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating 3 200-4000W Short Wave Quartz Infrared Heater Lamp with Tungsten Filament for Industrial Heating 4
Application Scenarios
Infrared Heating For Plastics Process
  • IR drying of coatings on plastics
  • IR stretching or shrinking plastics
  • IR Heating For Plastic Packaging
  • IR heating for blow moulding of PET bottles
Infrared Heating For Photovoltaic Industry
  • IR heating for string soldering
  • IR preheating for sputtering processes
Infrared Heating For Printing Industry
  • IR curing ink on cloth
  • IR drying for inkjet-based CTP plates
  • IR drying of printing products, such as using in banners machine
Infrared Heating For Food And Chemical Industry
  • IR heating for disinfection of tableware
  • IR heating of chicken and vegetables
  • IR heating of natural herbal medicine
  • IR heating for removing snow and ice
Infrared Heating For Glass Industry
  • IR preheating of car glass
  • IR drying of coatings on glass
  • IR heating for manufacturing and cutting laminated glass
Infrared Heating For Textiles Industry
  • IR drying of coatings on textiles
  • IR heating for laminating of fabrics
Infrared Heating For Electronic Industry
  • Coatings on electronic components
  • The aging of the electronic components
OEM Service

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, our Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of heat lamp according to customers' requirements. If you have drawings, we can make samples for you.
